Memory Experiments (continued)

I have two goals for this project:

Finish the VGA video recorder board (with op amps, bias pots, bias for ADC) – DONE!

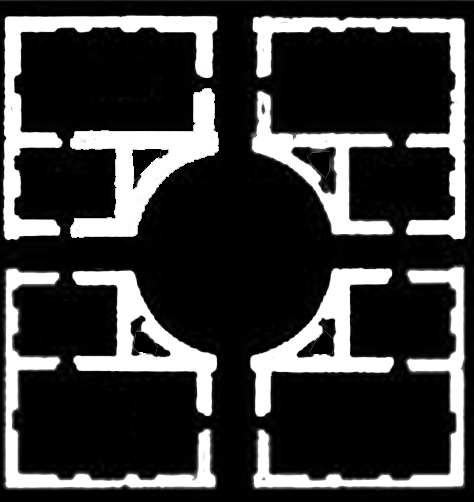

Make a version of the vectorscope image modification series but with a raster system taking the following image as the input – DONE :

1. Finishing the VGA Video Sampler board

For the first goal, I need to correct that last board I made:

Errata:

-The gain pots for the op-amp don’t work.

-I mixed up VCC (3.3V) and VCA (5V) in several places. (I just replaced the PFET with the LDO and manually rewired)

-The “EN” text next to the ADC was in the wrong place.

-I forgot to tie down the reset of 74HC590 with a 10K resistor.

-The 74HC04 is labelled backwards, I put inputs on the right and outputs on the left for some reason.

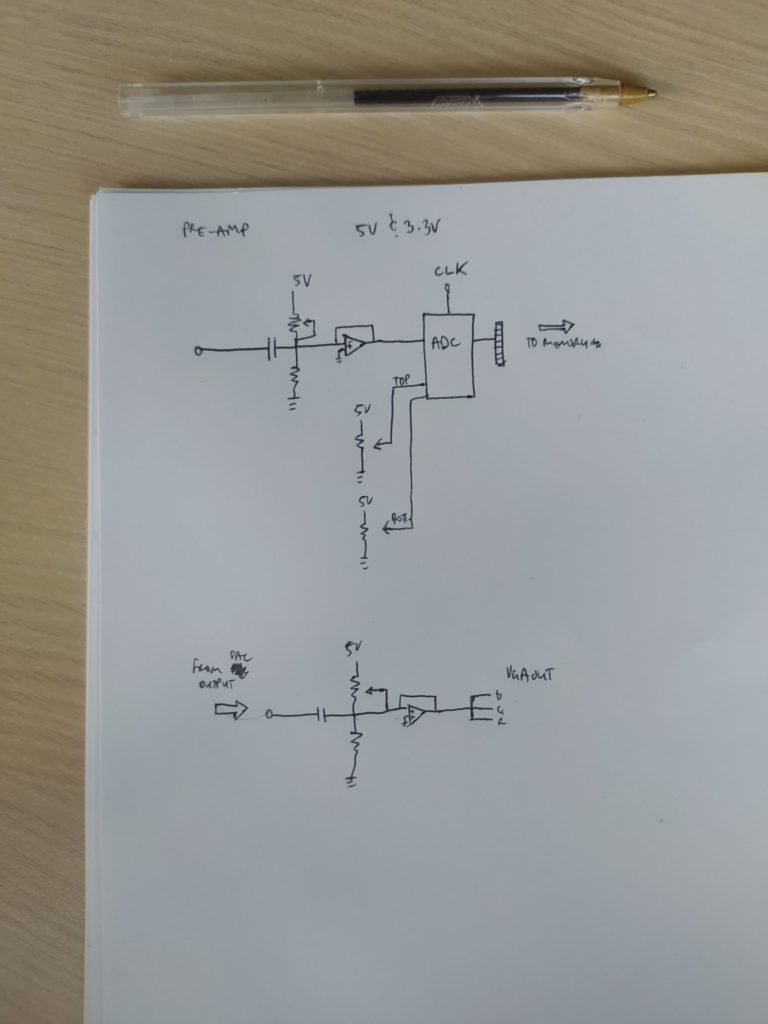

Things appear to work with these changes:

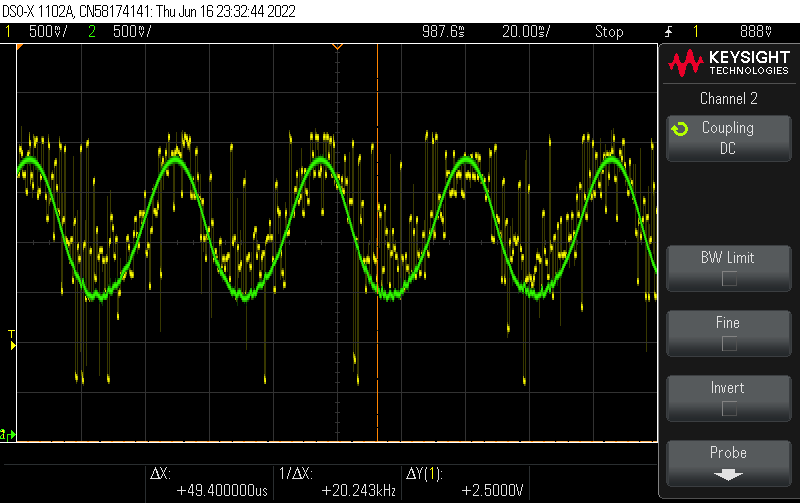

It takes some knob fiddling but I can get an input sine wave digitalized. One definitely needs an oscilloscope to see what’s happening though.

2. Vectorscope image series

I can either load the image into memory by playing it on a computer screen and capturing the pixels, OR, loading the image into memory with a microcontroller. I’m not sure how big I should make the image, and what dimensions, if I load the image.

Here is the p5.js code to take an image (called p.jpg) and print the red pixel value into a text document (called OUTPUT) with a comma and space seperator :

let img;

function preload() {
img = loadImage('p.jpg');
}

function setup() {
createCanvas(img.width, img.height);
background(220);
image(img, 0, 0);
let writer = createWriter('OUTPUT.txt');

for(var y = 0; y < height; y++) {
for(var x = 0; x < width; x++){
let pix = img.get(x, y);
writer.write(pix[0] + ', '); // takes RED pixel info, adds a comma and a space
if(!(y==1-height || x==1-width))
{
writer.write(pix[0]); // don't put a comma if it's the last element of the list
}
}
}
writer.close();
}

And here is the Arduino code to take this color information and load it into the memory space (90×90 max as PROGMEM has max 8,192 bytes max):

byte myChar;

#define IMG_WIDTH 90
#define IMG_HEIGHT 90
//data size=900 bytes
const unsigned char img [IMG_HEIGHT*IMG_WIDTH] PROGMEM={
17, 19, 19, 19, 19, 20, 20, 20, 20, 20, 21, 23, 23, 22, 21, 21, 22, 22, 21, 22, 21, 22, 21, 20, 21, 21, 23, 23, 23, 23, 23, 23, 24, 23, 25, 23, 24, 23, 25, 25, 25, 25, 25, 24, 25, 26, 24, 23, 25, 24, 23, 24, 25, 21, 20, 24, 24, 23, 20, 20, 21, 23, 22, 22, 22, 22, 22, 23, 23, 24, 23, 23, 23, 25, 23, 24, 24, 23, 24, 25, 23, 25, 25, 23, 25, 24, 24, 25, 28, 28, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 19, 35, 25, 32, 32, 26, 27, 17, 23, 27, 30, 33, 33, 35, 37, 35, 29, 30, 34, 37, 44, 26, 30, 65, 65, 57, 56, 55, 57, 59, 42, 38, 46, 38, 33, 40, 41, 43, 46, 35, 3, 0, 0, 0, 0, 1, 1, 0, 9, 49, 18, 0, 4, 0, 0, 0, 3, 2, 0, 0, 0, 1, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 1, 0, 1, 0, 0, 0, 1, 3, 29, 231, 255, 245, 252, 250, 247, 248, 240, 245, 249, 255, 255, 255, 255, 255, 254, 254, 255, 255, 255, 255, 252, 252, 255, 254, 255, 254, 255, 255, 255, 254, 255, 255, 254, 253, 255, 255, 255, 255, 255, 71, 1, 1, 1, 1, 0, 15, 189, 244, 255, 223, 205, 216, 183, 191, 207, 210, 221, 234, 240, 233, 220, 215, 113, 138, 251, 225, 219, 223, 224, 169, 166, 201, 208, 217, 220, 196, 190, 181, 189, 181, 188, 193, 148, 149, 207, 171, 25, 0, 50, 255, 255, 255, 255, 255, 255, 255, 255, 254, 255, 250, 245, 244, 253, 255, 255, 246, 240, 239, 231, 239, 234, 255, 255, 255, 249, 238, 234, 247, 255, 255, 255, 255, 255, 254, 255, 255, 255, 255, 255, 90, 0, 1, 0, 1, 1, 43, 245, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 241, 229, 249, 255, 255, 255, 254, 249, 249, 248, 255, 251, 254, 254, 255, 242, 235, 241, 253, 255, 255, 254, 255, 255, 255, 255, 255, 255, 255, 77, 0, 31, 240, 254, 249, 189, 170, 192, 190, 179, 202, 131, 12, 4, 0, 107, 226, 192, 54, 0, 11, 8, 2, 2, 146, 225, 204, 71, 0, 0, 65, 200, 206, 192, 194, 197, 185, 200, 255, 255, 255, 211, 24, 0, 1, 0, 1, 0, 8, 178, 255, 255, 243, 204, 194, 197, 198, 189, 209, 181, 25, 0, 0, 106, 217, 213, 96, 0, 6, 5, 7, 0, 126, 236, 199, 38, 0, 0, 84, 220, 208, 203, 205, 198, 210, 200, 225, 255, 255, 68, 0, 19, 226, 254, 219, 10, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 0, 0, 1, 1, 0, 1, 190, 255, 255, 95, 0, 3, 0, 2, 0, 3, 0, 48, 253, 255, 151, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 2, 0, 144, 255, 255, 80, 0, 62, 255, 255, 235, 24, 0, 0, 0, 0, 0, 3, 2, 0, 1, 2, 0, 1, 5, 3, 1, 1, 2, 4, 1, 0, 0, 1, 0, 3, 2, 0, 0, 0, 0, 0, 0, 0, 189, 255, 255, 105, 0, 1, 1, 1, 0, 3, 0, 65, 255, 255, 124, 0, 1, 0, 0, 0, 0, 0, 3, 6, 2, 1, 0, 0, 4, 3, 0, 3, 1, 1, 2, 1, 0, 2, 2, 2, 1, 0, 0, 0, 0, 0, 0, 0, 157, 255, 255, 85, 0, 45, 252, 255, 241, 31, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 2, 1, 0, 1, 1, 1, 0, 0, 1, 1, 0, 0, 1, 1, 0, 0, 0, 2, 1, 0, 0, 187, 255, 255, 102, 0, 2, 1, 0, 0, 2, 0, 94, 255, 254, 143, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 0, 2, 3, 1, 0, 0, 0, 134, 255, 255, 69, 0, 48, 253, 255, 227, 17, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 3, 0, 0, 1, 1, 0, 1, 1, 2, 1, 1, 1, 0, 0, 0, 0, 2, 0, 0, 178, 255, 255, 119, 0, 1, 0, 0, 1, 2, 0, 66, 255, 255, 138, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 0, 1, 0, 145, 255, 255, 84, 0, 49, 254, 255, 229, 19, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 2, 2, 2, 1, 0, 0, 0, 1, 1, 2, 1, 0, 1, 1, 1, 0, 0, 1, 0, 1, 196, 255, 255, 110, 0, 0, 0, 0, 0, 2, 1, 54, 255, 255, 138, 0, 2, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 130, 254, 255, 76, 0, 39, 245, 255, 225, 13, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 0, 0, 2, 1, 23, 233, 255, 255, 82, 0, 2, 1, 0, 1, 1, 0, 61, 255, 255, 124, 0, 2, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 0, 0, 0, 0, 142, 255, 254, 74, 0, 55, 255, 254, 246, 31, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 6, 207, 255, 255, 116, 0, 2, 0, 0, 0, 1, 1, 99, 255, 255, 137, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 92, 255, 255, 83, 0, 32, 254, 255, 107, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 2, 2, 1, 0, 0, 2, 1, 0, 71, 231, 255, 79, 0, 3, 0, 0, 0, 5, 0, 68, 241, 193, 48, 0, 2, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 159, 255, 89, 0, 55, 255, 182, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 3, 3, 3, 0, 0, 1, 1, 0, 4, 1, 0, 0, 5, 6, 0, 0, 0, 2, 3, 1, 1, 0, 1, 2, 3, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 3, 3, 0, 137, 255, 95, 0, 52, 255, 186, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 2, 2, 3, 0, 0, 2, 1, 1, 1, 1, 14, 41, 8, 0, 1, 1, 0, 0, 2, 7, 4, 0, 1, 2, 5, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 2, 0, 0, 173, 255, 80, 0, 40, 254, 238, 34, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 7, 5, 0, 0, 0, 1, 1, 0, 29, 124, 222, 255, 113, 0, 0, 0, 0, 0, 4, 0, 44, 174, 80, 0, 0, 3, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 114, 255, 255, 75, 0, 44, 250, 255, 225, 17, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 3, 1, 5, 1, 2, 5, 6, 3, 1, 2, 4, 4, 4, 2, 0, 0, 0, 1, 0, 93, 255, 255, 254, 191, 1, 0, 0, 0, 0, 2, 0, 60, 255, 255, 101, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 2, 0, 1, 0, 0, 2, 0, 113, 255, 255, 87, 0, 47, 251, 255, 249, 36, 1, 0, 0, 0, 2, 0, 0, 0, 1, 0, 0, 0, 1, 1, 2, 1, 1, 3, 3, 1, 1, 1, 3, 0, 1, 1, 0, 0, 0, 0, 1, 89, 255, 255, 255, 178, 0, 0, 0, 0, 1, 2, 0, 66, 241, 255, 139, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 67, 255, 255, 87, 0, 51, 245, 254, 235, 24, 0, 1, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 86, 255, 255, 254, 197, 0, 0, 0, 0, 0, 3, 0, 97, 163, 192, 142, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 2, 1, 0, 1, 0, 1, 115, 255, 255, 77, 0, 68, 254, 255, 241, 29, 1, 2, 0, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 0, 1, 0, 95, 255, 255, 255, 192, 0, 1, 0, 1, 0, 3, 0, 78, 237, 254, 114, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 1, 0, 0, 1, 1, 0, 0, 118, 255, 255, 84, 0, 72, 255, 255, 251, 41, 0, 2, 0, 0, 1, 3, 1, 1, 0, 0, 3, 1, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 1, 2, 1, 0, 1, 2, 0, 71, 255, 254, 255, 160, 0, 0, 0, 0, 1, 3, 0, 26, 233, 255, 132, 0, 0, 2, 0, 1, 1, 2, 2, 2, 2, 2, 0, 1, 0, 1, 2, 0, 1, 2, 3, 3, 2, 1, 0, 1, 2, 1, 0, 0, 0, 0, 0, 0, 165, 255, 255, 83, 0, 77, 255, 254, 227, 17, 0, 0, 0, 0, 0, 1, 4, 2, 2, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 51, 253, 255, 255, 158, 0, 0, 0, 0, 2, 0, 1, 54, 255, 255, 98, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 3, 3, 4, 2, 0, 0, 0, 0, 0, 0, 0, 139, 255, 255, 72, 0, 71, 255, 255, 229, 89, 66, 87, 83, 78, 90, 46, 0, 0, 0, 103, 142, 136, 145, 128, 162, 157, 122, 126, 127, 128, 127, 128, 130, 128, 128, 127, 127, 127, 126, 125, 106, 172, 255, 255, 255, 224, 30, 0, 0, 0, 0, 3, 0, 92, 255, 254, 135, 0, 46, 44, 8, 11, 39, 30, 25, 26, 34, 54, 45, 22, 39, 32, 28, 28, 26, 28, 27, 38, 14, 0, 4, 0, 5, 32, 37, 29, 27, 32, 25, 9, 169, 254, 255, 88, 0, 26, 227, 255, 255, 255, 255, 255, 255, 255, 255, 231, 36, 0, 61, 255, 255, 255, 255, 255, 255, 254, 255, 255, 255, 255, 254, 255, 255, 255, 255, 254, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 116, 0, 0, 0, 1, 0, 20, 190, 255, 254, 250, 239, 255, 255, 181, 196, 255, 245, 240, 241, 248, 255, 247, 239, 253, 246, 245, 245, 242, 243, 243, 255, 173, 0, 0, 0, 100, 254, 255, 245, 243, 247, 246, 246, 250, 255, 255, 79, 0, 46, 245, 255, 255, 254, 255, 255, 255, 255, 255, 255, 190, 0, 163, 255, 255, 254, 255, 255, 255, 255, 255, 254, 255, 254, 255, 255, 255, 255, 255, 255, 254, 255, 255, 255, 254, 255, 254, 255, 255, 255, 138, 0, 0, 0, 1, 0, 61, 255, 255, 255, 254, 255, 254, 254, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 254, 255, 255, 255, 255, 255, 255, 255, 119, 0, 12, 222, 255, 255, 255, 255, 255, 254, 255, 255, 255, 249, 48, 0, 80, 255, 255, 237, 139, 113, 121, 128, 127, 123, 149, 83, 1, 92, 219, 207, 197, 173, 206, 190, 150, 183, 255, 255, 255, 221, 214, 199, 170, 170, 180, 189, 242, 255, 255, 255, 254, 255, 255, 255, 255, 131, 0, 0, 0, 1, 0, 58, 255, 254, 255, 255, 254, 255, 255, 172, 80, 103, 108, 175, 220, 199, 101, 141, 255, 255, 158, 74, 100, 96, 102, 107, 87, 109, 60, 0, 4, 104, 128, 109, 115, 114, 125, 108, 97, 209, 255, 255, 88, 0, 58, 255, 255, 157, 0, 0, 0, 0, 0, 1, 0, 0, 5, 1, 1, 0, 0, 1, 0, 1, 0, 10, 221, 255, 253, 48, 2, 1, 0, 3, 12, 83, 255, 255, 254, 255, 255, 255, 254, 249, 193, 35, 0, 1, 0, 1, 1, 0, 79, 162, 233, 255, 255, 255, 255, 129, 0, 1, 8, 14, 11, 6, 8, 85, 255, 255, 70, 0, 0, 1, 1, 0, 0, 1, 1, 7, 10, 2, 1, 0, 0, 0, 0, 1, 0, 115, 255, 255, 86, 0, 80, 254, 187, 0, 0, 0, 2, 1, 1, 1, 0, 2, 6, 1, 0, 0, 0, 1, 0, 0, 0, 23, 231, 255, 255, 60, 1, 0, 1, 98, 200, 251, 254, 255, 255, 255, 241, 154, 81, 9, 0, 0, 0, 0, 0, 0, 0, 2, 0, 0, 6, 70, 183, 254, 255, 254, 189, 27, 16, 8, 0, 0, 5, 169, 255, 255, 86, 0, 1, 2, 3, 5, 4, 1, 1, 3, 5, 4, 4, 0, 1, 3, 1, 3, 0, 0, 169, 255, 90, 0, 88, 255, 179, 0, 0, 0, 0, 0, 1, 2, 4, 2, 1, 5, 5, 5, 1, 0, 2, 0, 1, 57, 255, 255, 255, 86, 0, 1, 137, 255, 255, 254, 255, 254, 209, 79, 11, 1, 0, 0, 1, 2, 0, 1, 0, 0, 1, 1, 2, 1, 1, 0, 0, 42, 168, 255, 255, 252, 152, 27, 1, 0, 14, 193, 255, 255, 88, 0, 2, 0, 2, 1, 1, 3, 6, 2, 0, 6, 4, 0, 1, 0, 0, 2, 4, 0, 150, 255, 89, 0, 64, 255, 255, 73, 0, 0, 0, 0, 2, 2, 8, 8, 0, 2, 4, 3, 1, 0, 1, 1, 0, 47, 250, 255, 255, 114, 0, 141, 255, 255, 255, 255, 247, 107, 0, 0, 1, 1, 2, 0, 1, 1, 0, 0, 1, 0, 0, 1, 2, 2, 0, 2, 1, 0, 0, 77, 244, 255, 255, 200, 22, 4, 12, 141, 255, 255, 87, 0, 2, 3, 1, 1, 0, 1, 2, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 33, 221, 255, 79, 0, 72, 255, 255, 201, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 1, 1, 0, 0, 0, 1, 34, 242, 255, 255, 90, 50, 255, 255, 253, 255, 220, 37, 0, 1, 9, 3, 1, 1, 0, 1, 1, 0, 0, 0, 0, 0, 2, 2, 1, 1, 1, 0, 4, 4, 0, 27, 208, 255, 255, 196, 24, 8, 62, 255, 254, 86, 0, 0, 3, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 174, 255, 255, 92, 0, 99, 255, 255, 227, 16, 0, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 64, 255, 255, 255, 87, 145, 255, 255, 255, 214, 23, 0, 2, 2, 5, 5, 0, 2, 1, 0, 1, 0, 0, 0, 0, 1, 1, 0, 1, 2, 2, 1, 1, 2, 5, 0, 8, 192, 255, 185, 5, 2, 80, 255, 255, 91, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 172, 255, 255, 93, 0, 105, 255, 255, 226, 16, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 52, 253, 255, 243, 131, 217, 255, 255, 235, 33, 0, 0, 1, 1, 1, 1, 0, 1, 1, 0, 1, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 1, 1, 2, 0, 0, 214, 207, 0, 0, 73, 254, 255, 89, 0, 3, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 1, 173, 255, 255, 97, 0, 93, 255, 255, 221, 13, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, 1, 49, 252, 255, 253, 254, 255, 255, 255, 97, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 33, 239, 193, 81, 141, 255, 254, 93, 0, 0, 0, 2, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 0, 168, 255, 255, 93, 0, 68, 255, 245, 64, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 34, 242, 255, 255, 255, 254, 255, 139, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 5, 0, 113, 254, 255, 255, 254, 255, 94, 1, 3, 0, 0, 1, 2, 0, 0, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 3, 191, 255, 94, 0, 69, 255, 185, 0, 0, 1, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 16, 228, 254, 255, 255, 255, 212, 15, 1, 2, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 8, 0, 5, 204, 255, 255, 255, 255, 88, 0, 2, 1, 1, 3, 2, 1, 5, 2, 2, 1, 1, 1, 1, 0, 0, 2, 1, 0, 153, 255, 95, 0, 92, 254, 179, 0, 1, 0, 0, 0, 0, 0, 4, 3, 0, 0, 0, 0, 0, 0, 0, 0, 0, 74, 254, 255, 255, 255, 255, 111, 0, 7, 4, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 3, 3, 0, 101, 255, 255, 255, 255, 94, 1, 0, 3, 2, 3, 4, 5, 7, 3, 5, 7, 5, 2, 0, 1, 0, 0, 5, 1, 163, 255, 93, 0, 102, 255, 241, 50, 0, 0, 0, 0, 0, 1, 0, 5, 4, 2, 0, 0, 0, 0, 0, 0, 0, 81, 255, 254, 254, 255, 233, 25, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 1, 3, 1, 10, 216, 254, 255, 254, 86, 0, 0, 1, 0, 0, 0, 1, 2, 6, 6, 4, 0, 0, 1, 0, 0, 0, 1, 21, 220, 255, 87, 0, 72, 255, 254, 235, 163, 162, 167, 164, 164, 182, 89, 0, 0, 15, 192, 233, 211, 212, 212, 210, 236, 223, 242, 255, 255, 255, 164, 0, 0, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 3, 2, 0, 0, 125, 255, 255, 255, 169, 87, 118, 97, 98, 106, 124, 72, 0, 5, 0, 39, 152, 148, 142, 143, 141, 146, 132, 216, 255, 255, 94, 0, 81, 255, 255, 255, 254, 255, 255, 255, 255, 255, 246, 63, 0, 115, 255, 255, 255, 255, 255, 255, 255, 254, 255, 254, 255, 255, 67, 0, 1, 3, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 2, 6, 0, 56, 255, 254, 255, 255, 255, 255, 255, 255, 254, 255, 255, 75, 0, 0, 165, 255, 255, 255, 255, 255, 255, 254, 255, 255, 255, 98, 0, 87, 254, 255, 254, 255, 254, 255, 255, 255, 255, 255, 109, 0, 165, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 48, 0, 0, 0, 2, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 2, 0, 0, 25, 232, 255, 237, 255, 244, 238, 255, 249, 248, 255, 254, 150, 0, 2, 212, 255, 255, 255, 255, 254, 254, 250, 252, 255, 255, 100, 0, 37, 224, 255, 173, 71, 81, 83, 70, 66, 70, 69, 20, 0, 81, 177, 148, 121, 117, 119, 116, 116, 119, 116, 118, 128, 82, 1, 1, 2, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 2, 1, 3, 2, 0, 25, 36, 15, 41, 23, 18, 46, 31, 26, 36, 30, 10, 0, 0, 34, 55, 37, 40, 41, 41, 40, 8, 91, 234, 222, 57, 0, 0, 11, 12, 3, 0, 0, 0, 0, 0, 0, 0, 4, 4, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 3, 2, 2, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 1, 0, 1, 3, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 4, 1, 0, 0, 0, 1, 1, 0, 0, 0, 2, 0, 3, 4, 3, 0, 0, 1, 4, 2, 2, 2, 1, 3, 2, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 1, 1, 0, 2, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 3, 4, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 3, 6, 1, 2, 1, 0, 0, 2, 5, 4, 0, 0, 2, 2, 0, 2, 10, 7, 0, 0, 2, 1, 1, 0, 1, 1, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 1, 1, 1, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 1, 2, 2, 4, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 5, 8, 1, 5, 7, 2, 1, 0, 0, 0, 1, 1, 0, 1, 0, 2, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 2, 0, 1, 0, 0, 0, 0, 0, 5, 1, 1, 0, 6, 3, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 1, 4, 1, 0, 0, 0, 0, 0, 7, 8, 0, 0, 1, 0, 0, 0, 0, 0, 3, 56, 60, 8, 0, 1, 161, 252, 137, 40, 65, 62, 45, 46, 68, 68, 16, 0, 18, 97, 111, 100, 100, 95, 100, 111, 113, 108, 129, 137, 42, 0, 0, 0, 2, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 2, 1, 1, 0, 11, 183, 217, 202, 207, 213, 221, 195, 189, 202, 211, 234, 99, 0, 0, 104, 182, 142, 141, 153, 141, 145, 126, 189, 255, 253, 45, 0, 18, 225, 255, 255, 255, 255, 255, 255, 255, 255, 255, 83, 0, 73, 255, 255, 255, 255, 255, 255, 255, 255, 254, 255, 255, 177, 0, 0, 2, 1, 2, 0, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 4, 3, 0, 62, 255, 255, 254, 255, 255, 255, 255, 255, 255, 255, 255, 103, 0, 1, 164, 255, 255, 255, 255, 255, 254, 255, 254, 255, 251, 46, 0, 8, 210, 255, 255, 254, 252, 253, 255, 253, 255, 180, 2, 0, 0, 181, 255, 255, 254, 255, 255, 254, 254, 255, 255, 255, 233, 23, 0, 4, 3, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 2, 1, 1, 1, 97, 255, 255, 255, 255, 247, 244, 241, 241, 244, 255, 156, 0, 0, 0, 34, 192, 208, 191, 190, 186, 186, 166, 218, 254, 249, 43, 0, 10, 225, 255, 119, 8, 26, 29, 28, 26, 28, 10, 0, 10, 1, 12, 57, 55, 52, 49, 36, 40, 35, 199, 255, 254, 255, 84, 0, 3, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 3, 1, 0, 159, 255, 255, 255, 135, 1, 23, 22, 20, 22, 16, 3, 0, 7, 8, 0, 1, 0, 0, 1, 0, 0, 1, 74, 255, 255, 40, 0, 20, 248, 131, 1, 1, 0, 0, 0, 0, 1, 0, 3, 2, 4, 2, 0, 0, 0, 0, 0, 0, 0, 169, 254, 255, 255, 165, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 4, 1, 31, 240, 255, 255, 255, 117, 0, 1, 0, 0, 0, 0, 1, 3, 0, 4, 5, 0, 0, 0, 0, 0, 0, 0, 0, 136, 255, 46, 0, 21, 246, 124, 0, 1, 0, 0, 0, 0, 2, 1, 1, 2, 1, 4, 0, 0, 0, 1, 2, 0, 1, 184, 255, 255, 254, 255, 55, 0, 6, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 4, 1, 0, 148, 254, 255, 255, 255, 118, 0, 0, 0, 1, 2, 1, 0, 2, 1, 0, 3, 2, 1, 0, 0, 0, 2, 6, 1, 124, 255, 45, 0, 16, 250, 156, 0, 1, 0, 0, 0, 0, 0, 0, 1, 2, 0, 1, 1, 0, 0, 0, 0, 1, 0, 194, 255, 254, 255, 255, 171, 0, 0, 2, 0, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 1, 6, 0, 40, 245, 255, 255, 255, 255, 121, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 6, 0, 137, 255, 42, 0, 22, 240, 255, 93, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 196, 255, 255, 255, 255, 255, 80, 0, 2, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 137, 255, 255, 255, 255, 254, 135, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 73, 255, 255, 49, 0, 13, 219, 255, 148, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 191, 255, 255, 255, 176, 202, 247, 31, 0, 1, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 2, 0, 0, 2, 0, 64, 253, 255, 254, 255, 255, 255, 122, 0, 3, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 138, 255, 250, 46, 0, 13, 222, 255, 113, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 2, 0, 1, 0, 190, 255, 254, 99, 0, 134, 255, 173, 0, 0, 6, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 3, 5, 4, 0, 24, 248, 192, 40, 29, 128, 255, 255, 113, 0, 0, 2, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 107, 255, 255, 46, 0, 22, 227, 255, 138, 0, 1, 0, 1, 1, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 188, 254, 197, 0, 54, 255, 255, 254, 153, 0, 1, 2, 2, 0, 0, 0, 1, 1, 2, 2, 0, 0, 0, 0, 0, 0, 2, 3, 0, 1, 2, 1, 4, 7, 0, 23, 217, 255, 200, 24, 0, 94, 254, 255, 126, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 1, 142, 255, 245, 38, 0, 17, 233, 255, 103, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 191, 255, 212, 8, 24, 181, 255, 255, 255, 186, 20, 0, 0, 3, 4, 2, 1, 2, 2, 0, 0, 0, 0, 1, 0, 2, 2, 0, 3, 2, 1, 3, 1, 0, 48, 230, 255, 255, 254, 84, 11, 84, 255, 255, 132, 0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 1, 0, 98, 254, 254, 39, 0, 18, 248, 143, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 4, 209, 255, 255, 108, 5, 4, 123, 255, 255, 255, 235, 75, 0, 0, 3, 5, 0, 4, 4, 0, 0, 1, 1, 1, 2, 0, 4, 1, 2, 4, 2, 0, 0, 109, 255, 255, 255, 254, 111, 4, 11, 165, 255, 255, 116, 1, 1, 2, 1, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 1, 0, 3, 1, 0, 139, 255, 48, 0, 18, 245, 126, 0, 1, 0, 1, 2, 0, 0, 2, 0, 1, 1, 0, 0, 1, 1, 1, 0, 0, 0, 183, 255, 255, 89, 1, 1, 6, 94, 239, 255, 254, 255, 186, 52, 0, 0, 1, 0, 6, 7, 0, 0, 0, 0, 2, 7, 6, 2, 0, 0, 0, 80, 211, 255, 255, 255, 179, 33, 8, 0, 5, 162, 254, 255, 124, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 6, 0, 128, 255, 47, 0, 25, 255, 173, 0, 0, 0, 0, 0, 1, 0, 0, 4, 4, 2, 1, 0, 0, 0, 0, 0, 1, 0, 200, 255, 245, 48, 6, 0, 2, 11, 15, 140, 252, 255, 255, 255, 185, 74, 0, 0, 0, 4, 2, 0, 0, 2, 5, 2, 0, 1, 7, 90, 201, 255, 255, 255, 255, 113, 9, 12, 0, 0, 5, 134, 255, 255, 123, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 143, 255, 44, 0, 31, 241, 255, 140, 7, 29, 33, 29, 14, 28, 32, 10, 0, 0, 51, 65, 51, 54, 54, 55, 36, 55, 227, 255, 235, 69, 142, 200, 122, 55, 1, 1, 189, 255, 255, 255, 254, 255, 227, 194, 108, 3, 0, 0, 0, 1, 0, 12, 102, 165, 228, 255, 255, 255, 255, 255, 123, 0, 9, 92, 135, 130, 52, 149, 255, 255, 137, 0, 19, 23, 24, 11, 0, 21, 9, 0, 5, 0, 0, 0, 0, 0, 0, 0, 1, 80, 255, 255, 64, 0, 10, 213, 255, 254, 251, 249, 251, 247, 231, 249, 255, 107, 0, 32, 243, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 253, 243, 240, 254, 255, 255, 255, 255, 254, 255, 254, 255, 65, 0, 0, 1, 0, 0, 121, 255, 255, 255, 255, 255, 255, 255, 255, 220, 213, 241, 251, 255, 255, 253, 252, 255, 255, 250, 233, 237, 239, 241, 228, 216, 254, 185, 0, 0, 132, 189, 164, 167, 156, 163, 161, 155, 228, 254, 255, 61, 0, 17, 221, 255, 255, 255, 255, 255, 254, 255, 255, 228, 37, 0, 0, 171, 255, 255, 255, 255, 255, 255, 255, 254, 255, 255, 255, 255, 255, 254, 255, 255, 255, 255, 255, 255, 255, 254, 255, 255, 255, 255, 66, 0, 1, 0, 0, 1, 124, 255, 255, 254, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 254, 255, 255, 255, 254, 255, 255, 255, 255, 255, 255, 255, 255, 167, 0, 1, 176, 255, 255, 255, 255, 255, 255, 255, 255, 255, 199, 1, 0, 21, 229, 255, 172, 79, 95, 102, 99, 95, 106, 46, 0, 2, 0, 36, 133, 138, 128, 127, 130, 132, 136, 140, 142, 141, 145, 145, 140, 142, 154, 159, 147, 157, 157, 143, 143, 146, 220, 255, 255, 153, 0, 0, 0, 0, 1, 0, 16, 200, 255, 255, 211, 148, 182, 180, 192, 203, 193, 188, 194, 196, 192, 187, 196, 189, 194, 196, 177, 187, 194, 201, 206, 220, 192, 29, 0, 0, 45, 175, 173, 158, 165, 164, 163, 137, 209, 255, 209, 12, 0, 26, 237, 255, 108, 1, 0, 0, 0, 0, 0, 0, 7, 5, 5, 3, 1, 0, 1, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 152, 255, 254, 55, 1, 3, 0, 0, 0, 5, 0, 99, 255, 255, 122, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 0, 3, 7, 5, 2, 1, 0, 0, 0, 0, 0, 0, 122, 255, 251, 43, 0, 30, 238, 255, 113, 0, 2, 0, 1, 0, 2, 2, 3, 3, 1, 2, 2, 2, 2, 2, 3, 5, 1, 1, 4, 3, 3, 3, 3, 4, 1, 1, 3, 1, 1, 1, 0, 1, 185, 255, 255, 87, 0, 1, 0, 1, 1, 0, 0, 141, 255, 255, 114, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 3, 2, 1, 0, 1, 0, 0, 0, 0, 0, 0, 142, 255, 255, 57, 0, 19, 228, 255, 120, 1, 0, 1, 0, 1, 0, 2, 0, 0, 0, 1, 2, 1, 1, 1, 2, 2, 1, 4, 2, 0, 0, 2, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 163, 255, 255, 74, 1, 1, 0, 0, 2, 0, 0, 141, 254, 255, 114, 1, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 1, 2, 0, 0, 0, 1, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 147, 255, 255, 54, 0, 30, 238, 255, 121, 0, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 2, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 0, 1, 142, 255, 255, 66, 0, 1, 1, 0, 0, 1, 0, 128, 255, 255, 105, 0, 2, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 152, 255, 247, 40, 0, 25, 232, 254, 119, 1, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 174, 255, 255, 71, 0, 1, 0, 0, 2, 0, 0, 143, 255, 255, 106, 1, 0, 0, 0, 2, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 1, 153, 255, 250, 45, 0, 28, 235, 254, 142, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 190, 255, 255, 76, 0, 1, 0, 0, 0, 0, 0, 148, 255, 255, 122, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 152, 255, 248, 45, 0, 20, 244, 230, 45, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 2, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 1, 117, 255, 255, 75, 1, 0, 0, 0, 0, 0, 1, 145, 255, 255, 94, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 118, 255, 250, 38, 0, 40, 254, 117, 1, 5, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 2, 1, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 70, 146, 27, 0, 1, 0, 0, 0, 2, 0, 65, 197, 84, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 1, 0, 143, 255, 39, 0, 25, 253, 126, 0, 7, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 3, 2, 0, 0, 4, 4, 0, 0, 1, 0, 2, 4, 0, 0, 0, 4, 4, 2, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 1, 0, 121, 255, 43, 0, 27, 255, 137, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 2, 1, 8, 25, 6, 1, 0, 0, 0, 0, 0, 4, 8, 11, 3, 2, 3, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 4, 0, 114, 255, 52, 0, 39, 254, 255, 85, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 2, 0, 0, 0, 0, 1, 0, 0, 1, 1, 0, 1, 23, 201, 237, 27, 0, 0, 0, 1, 0, 1, 0, 39, 240, 141, 0, 0, 3, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 26, 206, 255, 45, 0, 37, 244, 255, 131, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 2, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 98, 255, 236, 27, 0, 2, 1, 0, 0, 3, 0, 34, 255, 255, 52, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 138, 255, 245, 39, 0, 37, 245, 254, 118, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 95, 255, 244, 32, 1, 0, 0, 0, 2, 1, 0, 55, 255, 255, 46, 0, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 117, 255, 248, 39, 0, 33, 242, 255, 117, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 114, 255, 230, 21, 0, 1, 0, 0, 0, 4, 0, 51, 255, 255, 53, 0, 2, 1, 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 118, 255, 251, 43, 0, 29, 239, 255, 115, 1, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 114, 255, 237, 35, 0, 1, 0, 0, 0, 5, 0, 45, 255, 254, 51, 0, 2, 1, 0, 1, 0, 1, 0, 0, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 125, 254, 254, 48, 0, 34, 242, 255, 116, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 2, 1, 3, 2, 0, 0, 1, 0, 0, 2, 0, 0, 0, 0, 0, 0, 0, 0, 2, 1, 0, 109, 255, 242, 36, 0, 1, 0, 0, 1, 2, 0, 51, 254, 255, 56, 0, 3, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 2, 1, 0, 1, 124, 255, 246, 38, 0, 34, 245, 255, 111, 0, 1, 0, 0, 0, 0, 1, 0, 2, 2, 0, 0, 1, 4, 3, 7, 3, 2, 2, 1, 0, 0, 1, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 108, 255, 218, 7, 0, 0, 0, 1, 0, 3, 0, 44, 254, 255, 50, 0, 0, 0, 0, 0, 0, 1, 1, 1, 2, 0, 0, 1, 3, 3, 1, 1, 3, 1, 1, 0, 1, 1, 4, 2, 2, 0, 0, 0, 0, 0, 0, 0, 128, 255, 243, 36, 0, 40, 246, 255, 157, 9, 23, 32, 30, 17, 29, 13, 0, 1, 0, 24, 61, 25, 0, 1, 0, 0, 1, 0, 0, 34, 32, 0, 1, 0, 1, 12, 6, 0, 2, 19, 22, 0, 128, 255, 240, 36, 0, 2, 1, 1, 0, 1, 1, 64, 255, 255, 64, 1, 10, 7, 10, 10, 16, 6, 0, 0, 0, 10, 35, 13, 1, 0, 0, 0, 0, 0, 0, 6, 8, 0, 0, 0, 0, 3, 8, 6, 7, 8, 2, 0, 150, 255, 248, 43, 0, 27, 229, 255, 255, 247, 242, 246, 243, 233, 254, 216, 46, 0, 43, 217, 255, 242, 61, 0, 23, 11, 18, 0, 94, 255, 255, 102, 2, 6, 121, 253, 228, 215, 220, 241, 250, 176, 197, 255, 255, 204, 6, 1, 0, 0, 2, 1, 8, 214, 255, 238, 243, 222, 230, 223, 225, 226, 255, 150, 0, 0, 49, 217, 255, 189, 22, 18, 37, 36, 41, 22, 75, 228, 250, 83, 0, 1, 44, 203, 245, 227, 226, 226, 224, 223, 249, 255, 251, 46, 0, 23, 231, 255, 254, 255, 255, 254, 255, 255, 255, 254, 255, 255, 255, 255, 255, 255, 255, 254, 255, 255, 255, 255, 252, 255, 255, 255, 255, 255, 255, 254, 255, 255, 255, 255, 254, 255, 255, 255, 255, 241, 33, 0, 1, 0, 1, 0, 14, 224, 255, 255, 255, 255, 255, 255, 255, 255, 254, 255, 255, 255, 255, 255, 255, 255, 254, 255, 255, 255, 255, 255, 255, 255, 254, 255, 253, 254, 255, 255, 255, 255, 255, 254, 255, 255, 255, 255, 244, 39, 0, 10, 122, 153, 147, 144, 138, 142, 134, 131, 131, 138, 145, 136, 124, 122, 125, 139, 148, 151, 158, 139, 129, 143, 40, 74, 144, 135, 128, 127, 106, 109, 116, 106, 102, 99, 110, 117, 114, 97, 129, 96, 0, 0, 0, 0, 0, 0, 0, 102, 138, 112, 123, 116, 117, 107, 114, 131, 132, 140, 135, 135, 130, 112, 137, 86, 86, 118, 105, 101, 100, 108, 94, 93, 101, 103, 119, 120, 105, 100, 103, 102, 101, 99, 97, 95, 89, 83, 63, 7, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0
// ARRAY OF PIXELS GOES HERE, COMMA + SPACE SEPERATED
};

void setup() {
pinMode (0, OUTPUT);
pinMode (1, OUTPUT);
pinMode (2, OUTPUT);
pinMode (3, OUTPUT);
pinMode (4, OUTPUT);
pinMode (5, OUTPUT);
pinMode (6, OUTPUT);
pinMode (7, OUTPUT); // PORT D

pinMode (8, OUTPUT); // WR PIN (inverted)


for (byte k = 0; k < strlen_P(img); k++) {

digitalWrite(8, LOW); // inverted so this puts WR HIGH (to read)
delay(10);

myChar = pgm_read_byte_near(img + k);
PORTD = myChar;

digitalWrite(8, HIGH); // inverted so this puts WR LOW (to write)
delay(10);

}
}
void loop() {
}

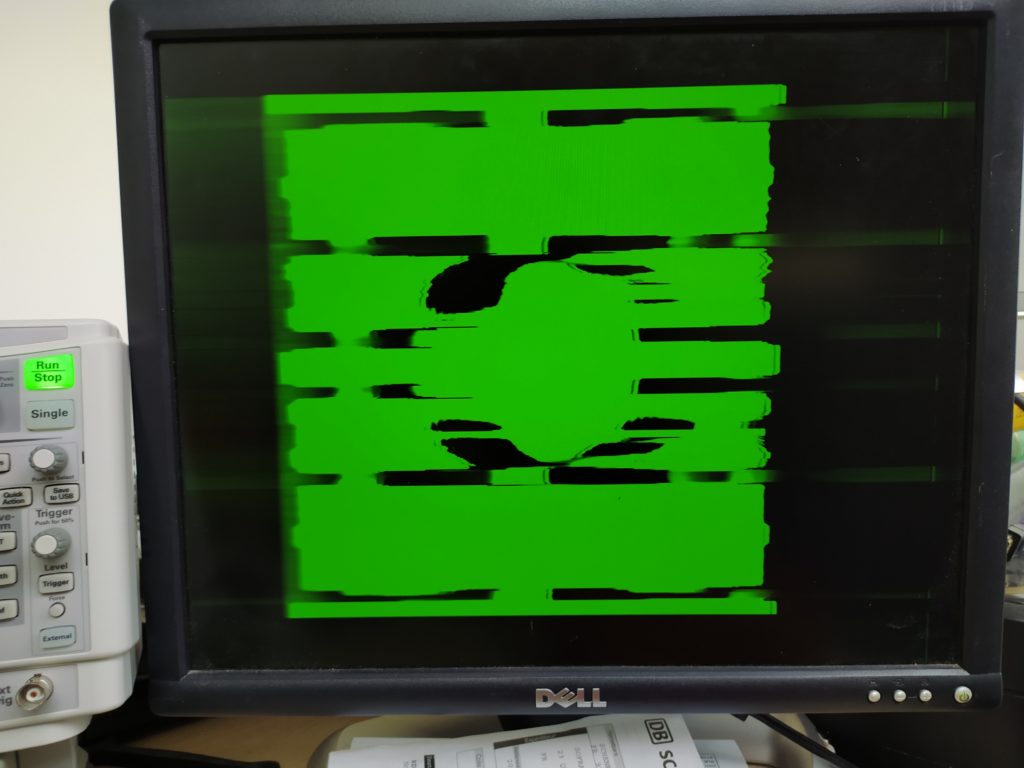

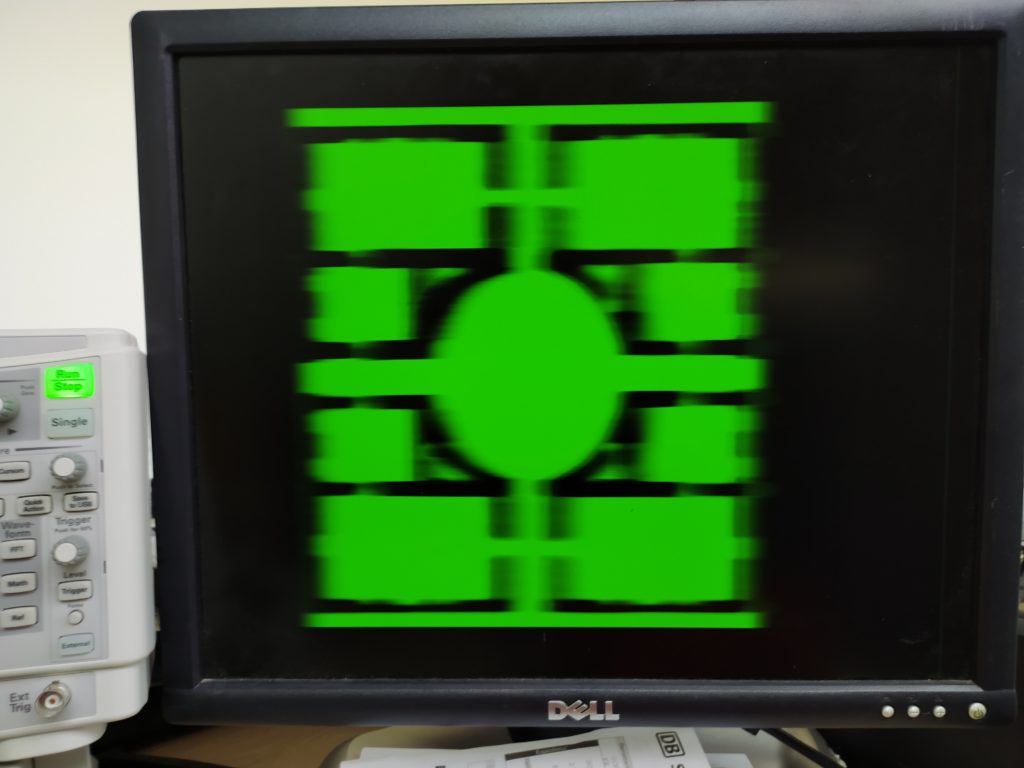

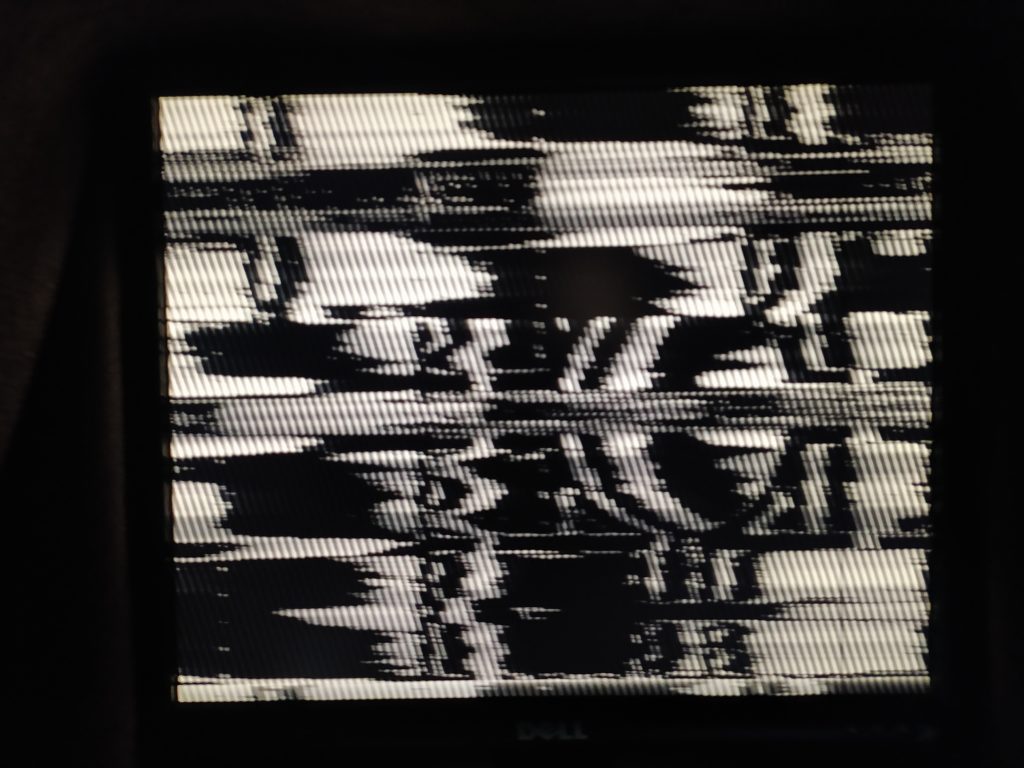

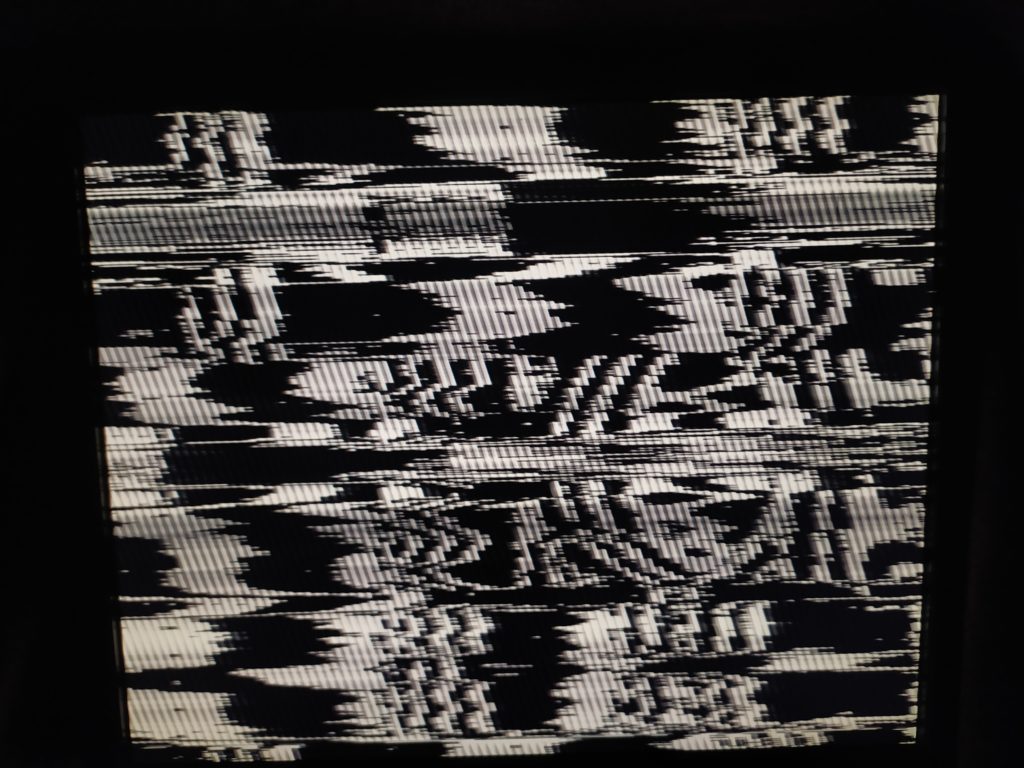

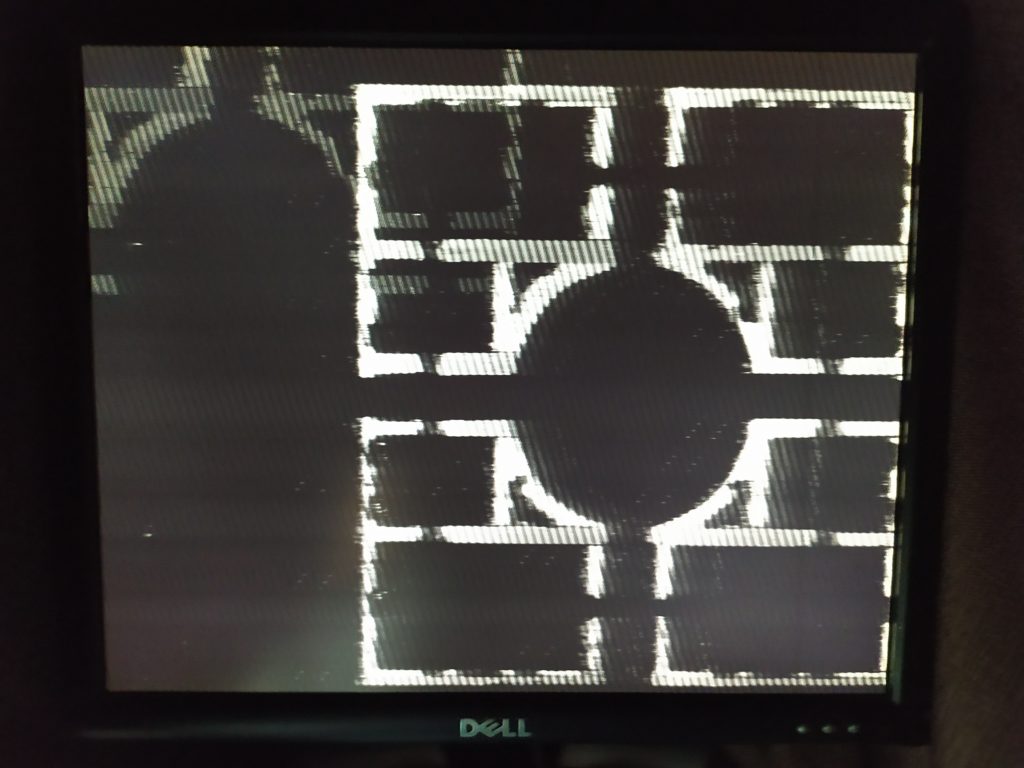

Success finishing the board and recording Palladio distorted by the board :

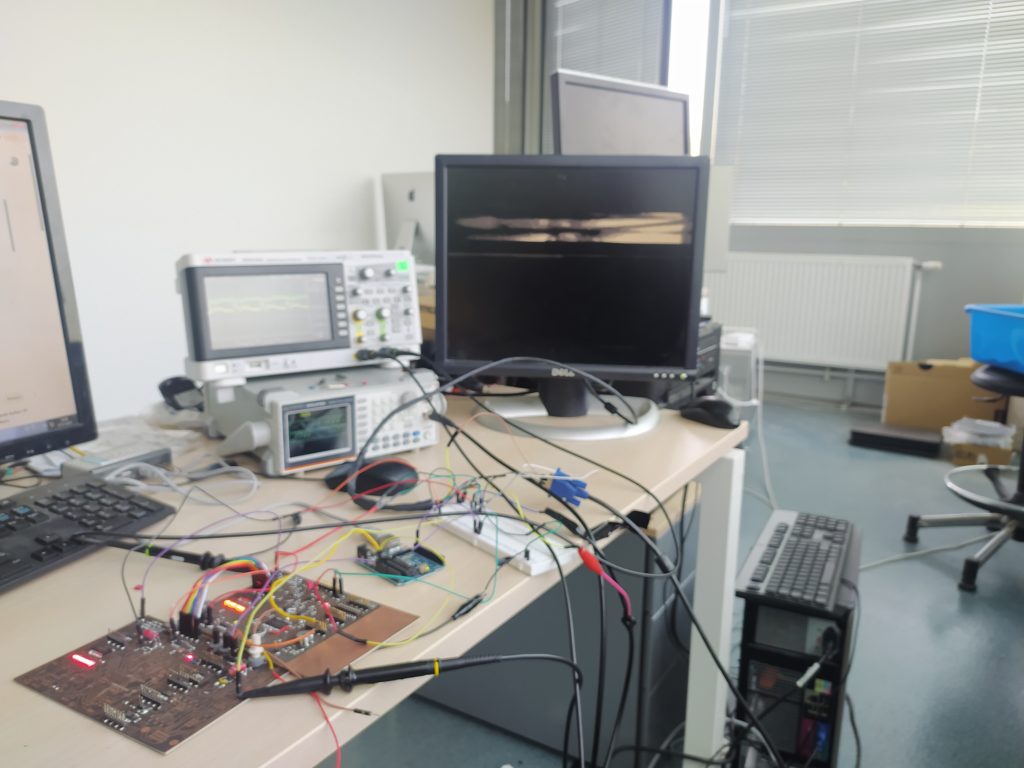

Here is the setup :

I’m currently using two boards, but soon I’ll have the components to put everything on the board to the left.

The techniques I’m using is the one developed in the previous post :

TO RECORD IN BURSTS: I can now save a short video : 695.45 kHz (This is the slowest I can go and still almost see an image) on the function gen AND’ed with the top 4 frequency divisions of the vertical sync. This makes for a burst of image recording every X number of frames. I then amplify the output to make it visible on screen (and speed the clock up to 695.48 kHz).

TO STOP THE IMAGE JUMPING: If the reset is connected to the inverse of the freq subdivision of the vertical sync signal AND’ed with the address 20, it will play the image in a loop and always place it in the same part of the screen !

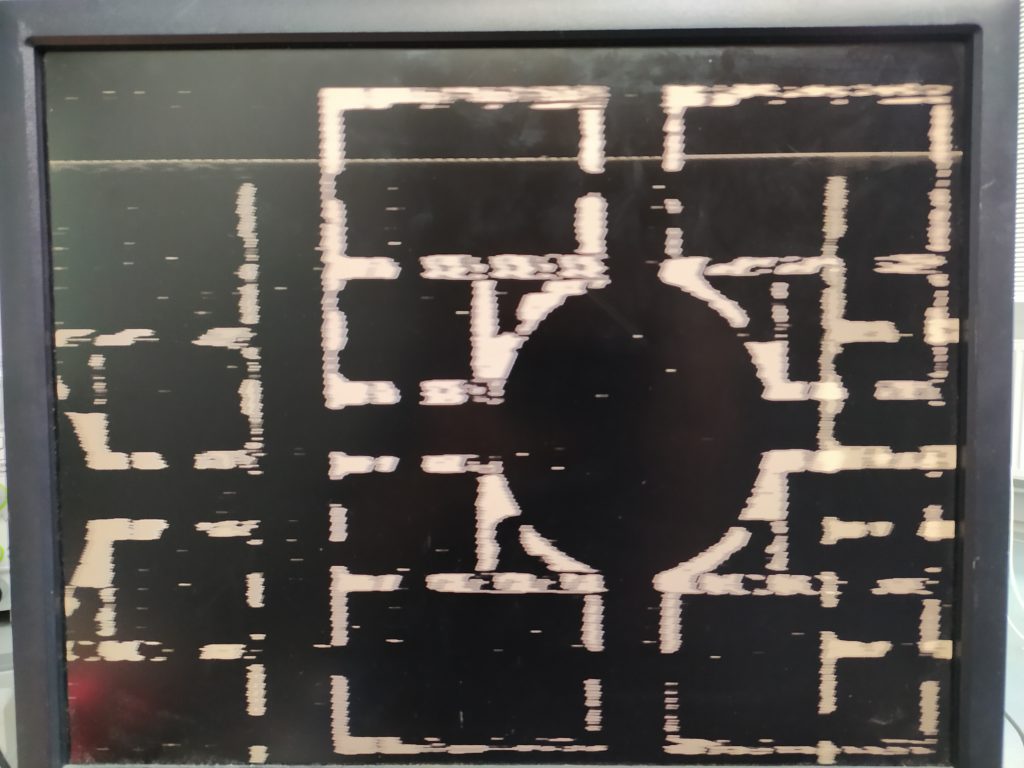

EXPERIMENT : 1 bit recording

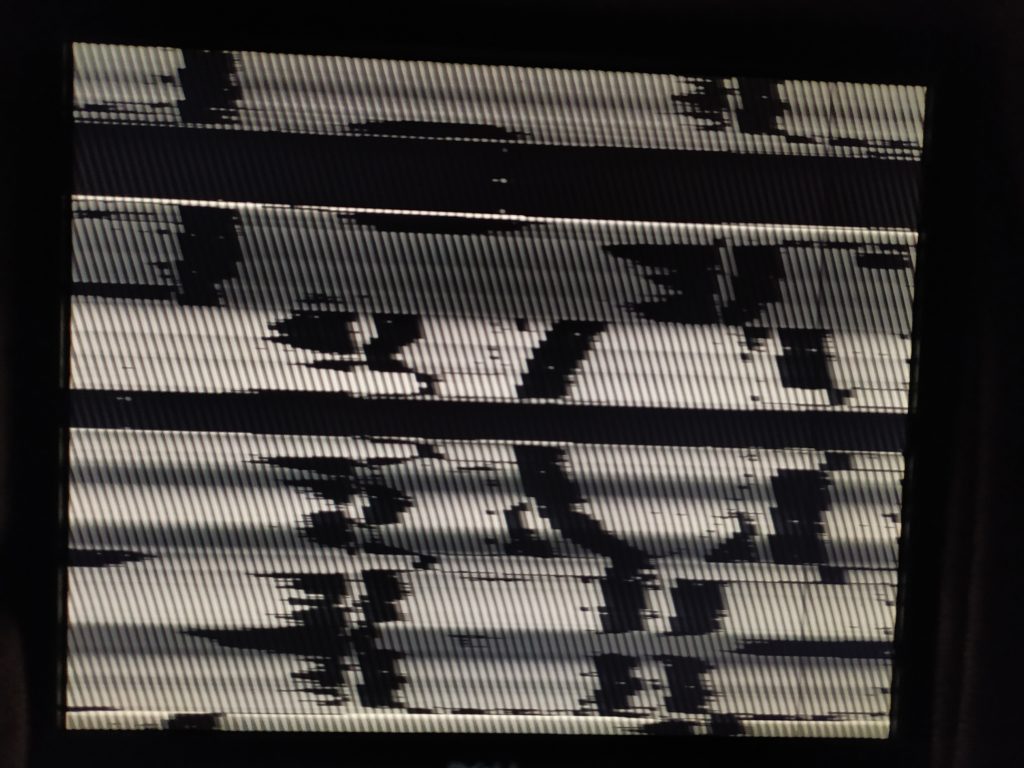

Recording a single bit of an image appears to produce almost the same image quality ! This means that in theory I could record 8 videos at the same time and output video to 8 screens simoultaneously !

EXPERIMENT : Loading an image with Arduino

Loading the tiny image once was a drop of water in the ocean so I recorded the image again and again until I ran out of space. This is taking a long time with a few 10ms delays in my code.

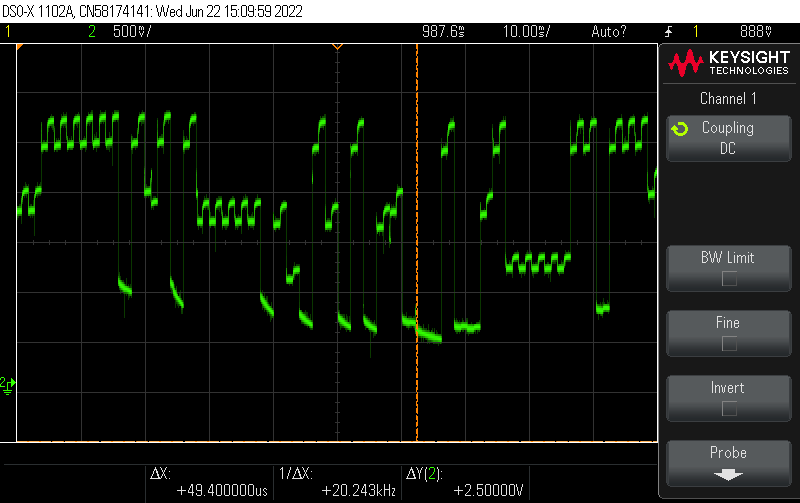

Here is the Arduino sending bits (captured after DAC) :

but so far nothing that comes out looking like an image on the other side…

I also can’t get my VGA to HDMI converter working…

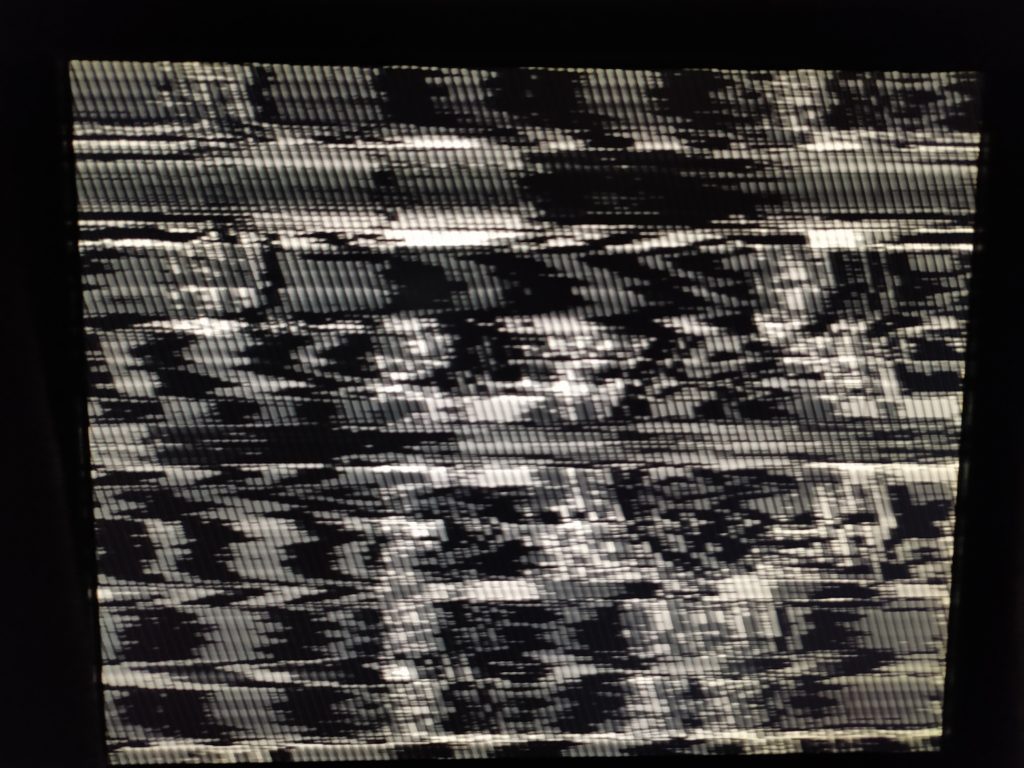

Here’s an attempt at a grid of raster variations :

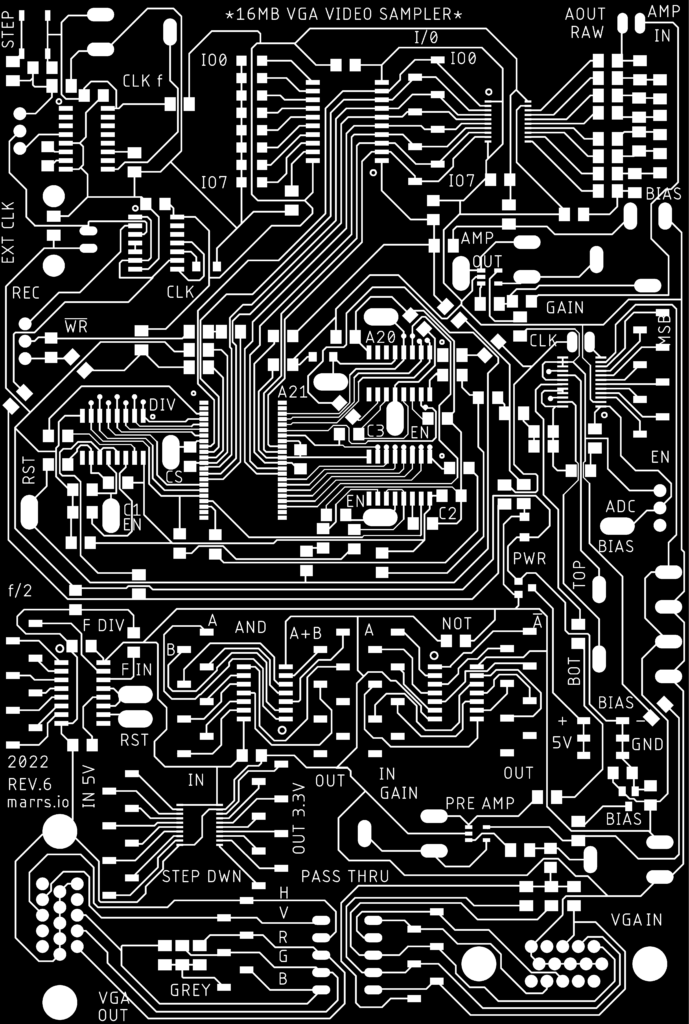

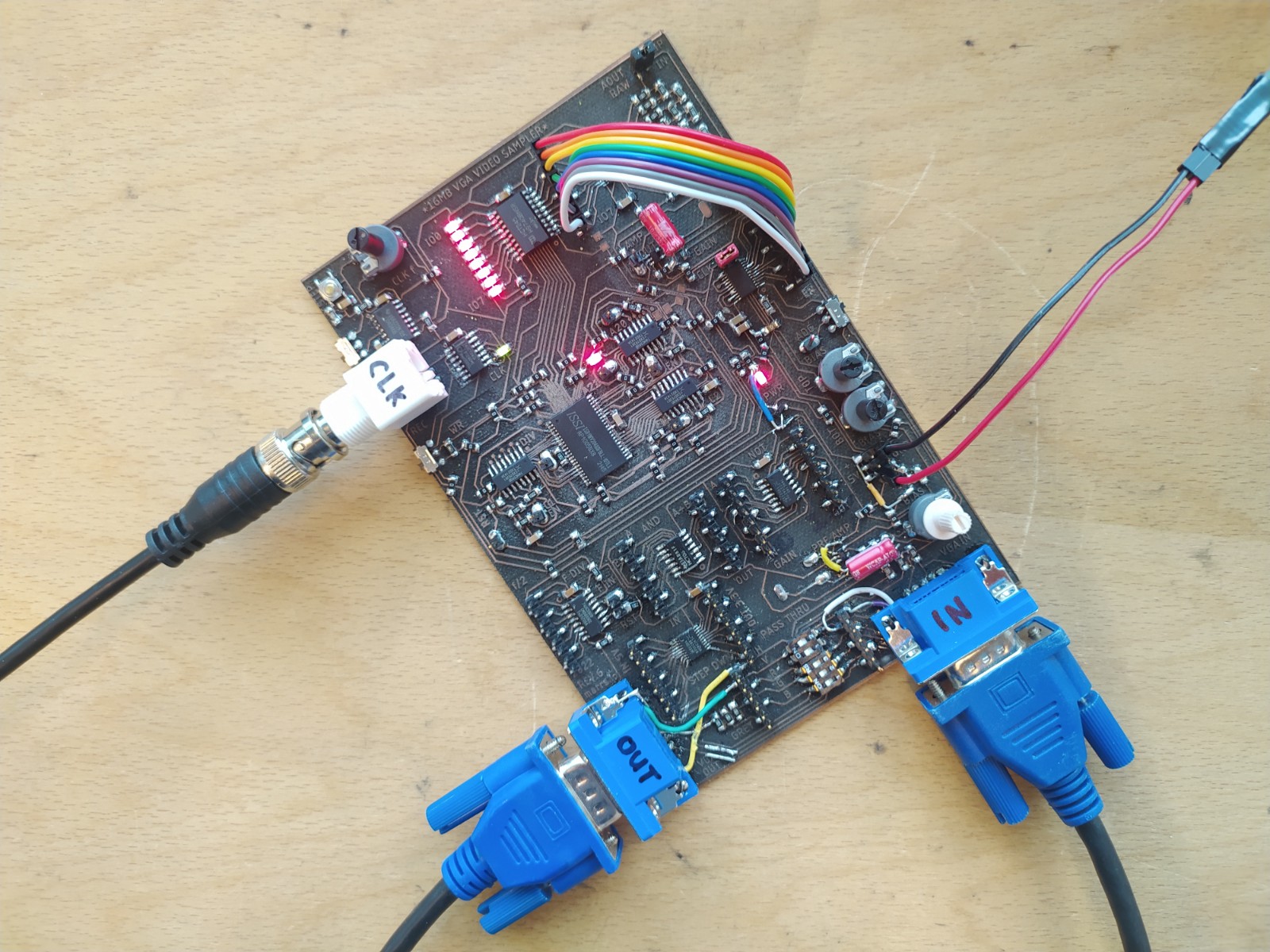

Here’s the final version of the board :
